What is MIM? An Introduction to Metal Injection Molding

What is MIM? MIM is perfect for easily making many products or those with intricate shapes. Nowadays, MIM is widely used for manufacturing computer hinges, wearable devices, and products in sectors like medical, aerospace, firearms, and automotive.

What is MIM (Metal Injection Molding)?

Metal Injection Molding(MIM) is a manufacturing process offering many benefits compared to other methods like CNC machining. MIM is a technique where metal powder and binder are combined to form a feedstock, which is then shaped and solidified for product creation.

This process is great for making complicated metal parts, some of which can't be made with other methods. MIM parts have properties similar to standard alloys, and they're made with little waste.

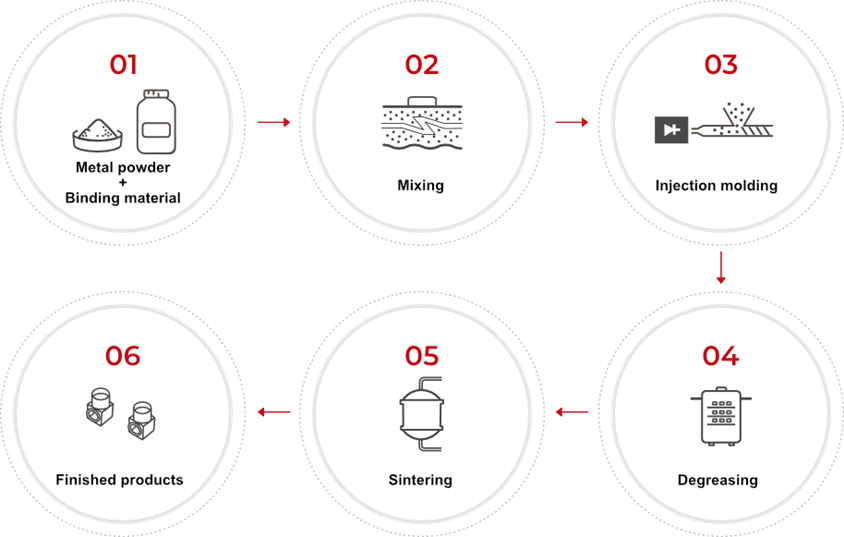

Process of Metal Injection Molding

In the initial phase of the MIM process, metal powders are combined with binding materials. These binders are typically made up of polymers like wax and polypropylene. When mixed together, they create a malleable mixture known as feedstock. This feedstock has a consistency somewhat similar to clay or dough, allowing it to be shaped.

The prepared feedstock is then injected into a mold using machines similar to those used in plastic injection molding. The mold is designed to have the exact shape of the desired final product. Once the feedstock fills the mold, it starts cooling and takes the shape of the mold.

After molding, the part contains both the metal powder and the binders. The next step is to remove most of the binder, a process called debinding. This can be done using solvents, heat, or other methods. The remaining part is fragile and is termed as the "brown" stage because of its appearance and porosity.

Sintering is the final and critical phase of the process. The "brown" part is heated in a controlled environment to just below the melting point of the metal. This causes the metal particles to bond together, but without melting completely. The part shrinks and becomes denser, resulting in a solid metal component. After sintering, the part has mechanical properties similar to traditional metal parts and can undergo further treatments if required.

Common Materials Used in Metal Injection Molding

The Metal Injection Molding (MIM) process utilizes a diverse array of materials, typically classified into four primary groups:

Valued for their cost-effectiveness, these materials stand out for their pronounced corrosion resistance and durability. The category encompasses steels, stainless steels, tool steels, iron-nickel magnetic alloys, and niche alloys like Invar and Kovar.

Notably more robust than steel, these alloys enable the creation of lighter objects without compromising on strength or endurance. The group includes tungsten heavy alloys and the tungsten-copper fusion.

These materials are distinctive for their remarkable hardness, wear resistance, and refractory nature. This category consists of cemented carbides, especially WC-Co, and cermets with types such as Fe-TiC.

Plenty of metal are selected for materials of metal injection molding due to their unique property features.

There are some other precious metals applied in the process by various manufacturers, including titanium alloys, cobalt-chromium, nickel, nickel-based superalloys, molybdenum, molybdenum-copper, and composite particles, tailored for unique or customized applications.

Advantages of Metal Injection Molding

Understanding what MIM is allows manufacturing mechanics to harness its unique benefits which encompass:

MIM components, with their densities echoing those of wrought materials, offer substantial benefits. Materials like Fe-TiC ensure increased strength, while ferrous alloys guarantee unmatched corrosion resistance, placing MIM components a cut above those created using standard powder metallurgy.

MIM grants design and R&D teams more freedom in their design processes. It empowers engineers to create geometrically intricate parts without the extra machining steps that other methods require, like CNC

MIM components can achieve a density ranging from 95% to 99.5%, with a tolerance better than +/- 0.5%. It also excels at forming elongated cylindrical structures with impressive length-to-diameter ratios. By utilizing powder with a particle diameter of less than 20μm, MIM can achieve a surface finish finer than 1.0um.

A standout feature of MIM is its ability to blend multiple basic forms into a single, sophisticated component. This not only streamlines the assembly process but also reduces costs compared to using traditional CNC methods.

Metal Injection Molding (MIM) offers a multitude of advantages that set it apart from other metal manufacturing processes.

• Powder Metallurgy: MIM can produce more intricate product shapes and meets higher strength requirements.
• Casting Forming: MIM offers a broader range of material choices.
• Precision Casting: MIM can produce thinner and more refined products.
• Turning Process: When it comes to mass production, MIM is more cost-effective.

Applications and Industries Benefiting from MIM

MIM has seen expansive use across various sectors such as automotive, medical, power tools, smart locks, notebooks, and firearms. Here's a snapshot of how different industries utilize MIM for specific components:

In the realm of vehicle production, MIM plays a crucial role, shaping everything from engine rocker arms to gear shift forks using stainless steel 316L. Furthermore, it forms indispensable parts for steering, locking, gearbox, turbo charger, guaranteeing peak vehicular performance.

With its advanced metal injection molding technology, MIM crafts essential power tool components. Components such as the blade clamp, pawl, flexible shaft, and yoke are not only intricately designed but also exhibit superior strength and durability, ensuring that the tools function optimally and have an extended lifespan.

With the advancing world of security, smart locks require precision and durability. SZS creates intricate bevel gears using stainless steel 17-4 PH that enhance the lock's functionality and security.

In the world of personal computing, notebooks demand parts that are durable yet space-efficient. MIM comes into play by manufacturing crucial parts like robust hinges, hooks, and webcam parts made with iron-nickel alloy and stainless steel 17-4 PH.

The world of firearms demands components that can withstand high pressures and wear while maintaining precision. Through MIM, critical parts such as slide lock lever, ejector, safe arm rotor, and pistol upswept grip safety parts are crafted, ensuring the firearm operates reliably and safely.

In conclusion, “What is MIM?” is a common question for newcomers in precision metal components. Metal Injection Molding represents a pivotal shift in producing intricate metal parts. Its significance will only grow as industries continue to advance.
