Various Types of Hinges and Their Uses: Guide to Laptop Hinges
Hinges commonly serve the purpose of joining two panels, facilitating the action of opening and closing a flat surface. Within the laptop industry, it's particularly crucial for these hinges to be both durable and operate smoothly, ensuring a user-friendly experience for customers.
This exploration delves into the mechanics of these hinges, examining how each type of hinges operates and their uses. Each serves a specific purpose, from providing basic support to enabling flexible screen positioning and rotation.
How Do Laptop Hinges Work?
The hinge on a laptop is an often overlooked yet critical element responsible for holding the screen at the perfect angle. It allows the smooth opening and closing of the laptop's lid, offering both flexibility and protection while ensuring a seamless connection to your device.
These hinges are typically made of metal and incorporate a mechanism that balances flexibility with sturdiness. Inside the hinge, there are usually small gears or rolling mechanisms that facilitate the opening and closing of the laptop.
Types of Laptop Hinges and Their Uses
Multiple types of hinges are employed in laptop design. In the group of laptop applications, common hinges are listed as below:

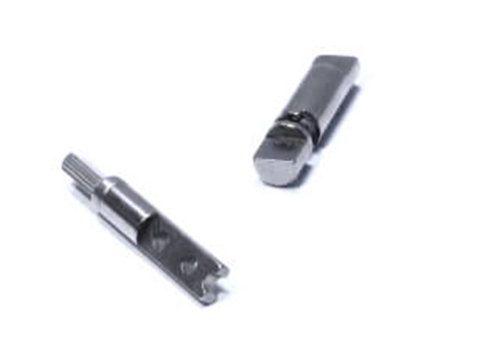

Shaft Type
Shaft hinges provide a smooth, balanced operation, allowing devices to effortlessly rotate while minimizing backlash for a quality user experience. Engineered for endurance, they are confirmed to surpass 20,000 cycles, featuring an asymmetrical damping design ideal for applications with directional damping needs.

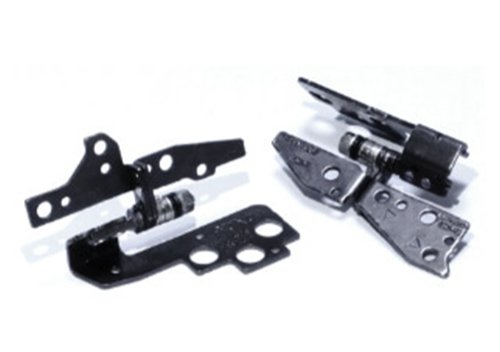

Detent Type
Detent hinges are expertly crafted to securely hold objects in a specific position, offering the convenience of manual angle adjustment without additional mechanical support. When installed on a laptop, this type of hinge facilitates smooth opening and closing actions while ensuring the device remains firmly in place once adjusted..

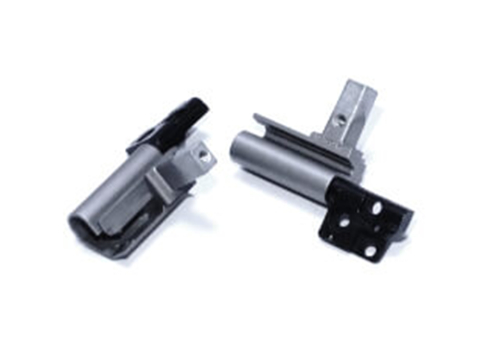

Die-Casting Hinge
Die casting, a process where molten metal is injected into precision-engineered molds under high pressures up to 700 MPa, offers consistency and high-quality finishes in small to medium-sized castings, ideal for large-scale production due to low incremental costs.
SZS excels in die casting, particularly with zinc alloy, prized for its strength, cost-effectiveness, and impressive conductivity. Zinc's finishing quality ensures this type of hinge is both durable and visually appealing, with corrosion resistance enhancing longevity.

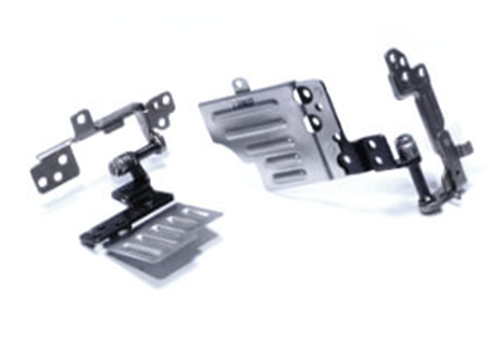

Disc-Type
Disc-Type hinges are a conventional choice in the laptop industry, and it can withstand 15.0kg-cm torque, providing robust support for heavier screens. These hinges are designed for tailored tension, allowing for a smooth and deliberate operation of panel movement, ensuring stability and aesthetic integrity for both safety and visual appeal.
360° Type
360° hinges offer a unique holding mechanism that relies on internal friction to prevent unwanted movement, allowing laptop screens to maintain the chosen angle without slipping. Engineered for customized tension, these hinges provide a controlled and intuitive feel to the opening and closing of panels.
Types of LCD Hinges and Their Uses
LCD Monitor Hinge

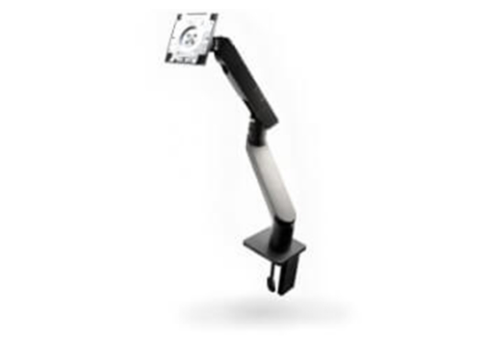

The LCD monitor hinge provides an ergonomic solution for a tidy workspace. It is capable of supporting a monitor with up to 28 kg-cm torque, allowing for smooth height adjustment of up to 15 inches and offering a lifespan of 15,000 cycles.
Compatible with VESA (Video Electronics Standards Association) Standard Interfaces, it allows for full-motion adjustability—tilt, swivel, and rotation—for optimal viewing. It's designed to free up desk space and minimize strain on neck and shoulders, enhancing productivity.
Types of Tablet Hinges and Their Uses

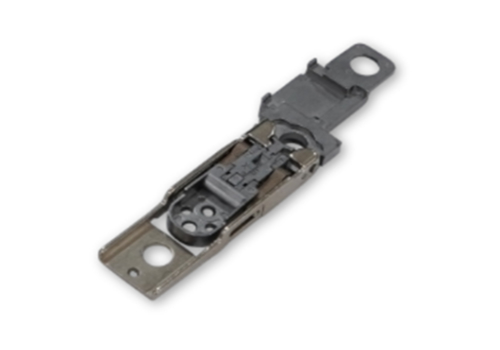

Free-Stop
Free-stop type hinges epitomize practicality and versatility, offering smooth and consistent resistance across all angles of movement for positioning panels and displays, like those on tablets, without extra stoppers.
Seamlessly integrating into various designs, these hinges enhance functionality while preventing injury, making them a valuable component in equipment covers, adjustable monitors, lighting, and various industrial uses.
They're built to last, accommodating diverse sizes and mounting preferences, and revolutionize product design with their robust construction and effortless adjustability.
Counterbalanced

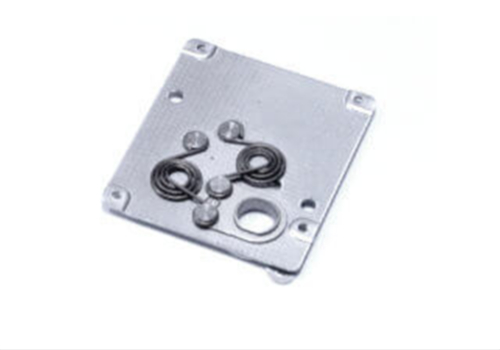

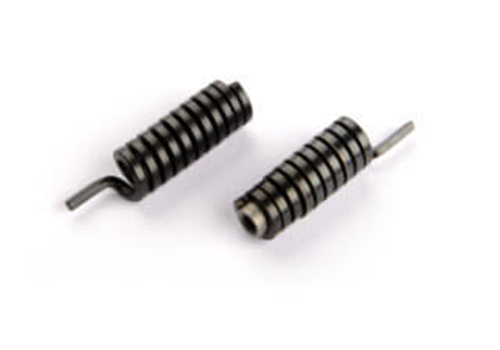

Counterbalanced hinges are expertly designed to simplify the handling of heavy loads with a spring system that counteracts the weight, reducing the effort needed to lift and maintain position.
Providing precise balance and ideal for managing weighty objects in confined spaces, they come in an array of torque values to meet diverse needs. Incorporate these hinges into your design for an effortless combination of functionality, dependability, and efficient use of space.
Pop-Up
Pop-up hinges, crafted with precision for tablets, offer a seamless lift for easy access and come in a variety of types, sizes, and finishes to boost your product's functionality.
While they're a perfect match for tablets, their versatility extends to any device requiring a fixed angle setting. Easy to install and operate, these hinges enhance device handling, ensuring a swift setup and a fluid, customizable motion for the utmost convenience.

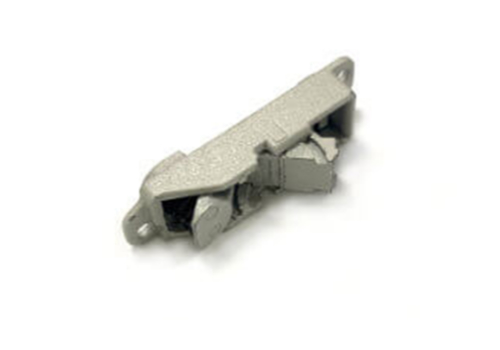

One-Stop
Our one-stop hinges elevate tablet design with their exceptional functionality, allowing for smooth panel or screen adjustments without the need for extra stopping mechanisms. They blend into your designs, maintaining an uninterrupted appearance while enhancing security against unauthorized access.
Crafted with deliberate precision, these hinges offer an elegant, space-saving solution that meets the demands of both aesthetics and utility, making them an exemplary choice for engineers seeking a versatile and secure hinge option.
Types of Tablet Hinges and Their Uses

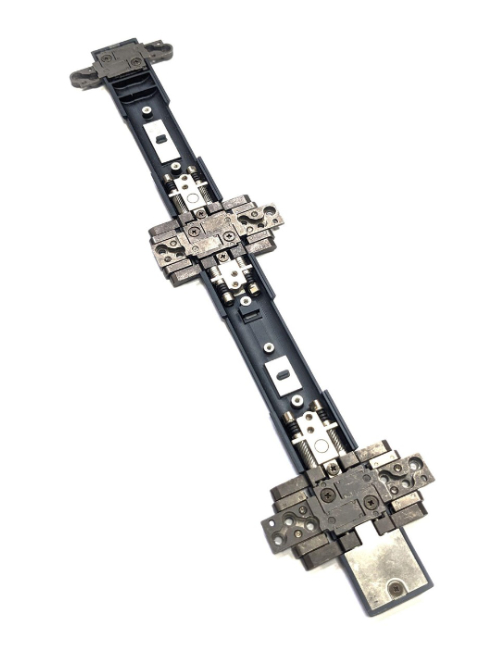

U-Type Hinge
U-type hinges are integral to the functionality of contemporary foldable and flip phones, offering the essential flexibility for these devices to open and close with ease. Their durable construction ensures that the phones can withstand numerous folding cycles while preserving their form and function.

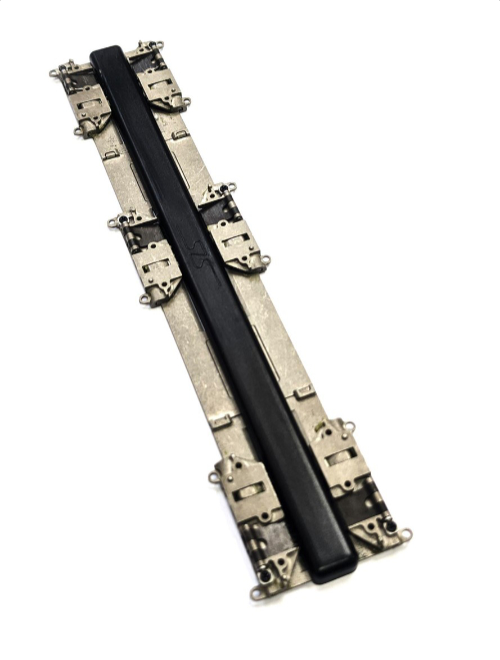

Waterdrop Hinge
Waterdrop hinges are essential components in the latest foldable and flip phones, crafted to ensure a fluid folding action that accommodates larger screens within sleek, space-saving designs. Such hinges are crucial for the smooth, cutting-edge appearance of these devices, enabling the screen to display seamlessly as it transitions around the hinge.
Sliding Hinge
Sliding hinges are typically found in traditional mobile phones, particularly slider phones. They enable the sliding motion, which reveals or hides the keyboard or additional features beneath the main screen.
Renowned for their straightforward design, practicality, and effortless glide, sliding hinges are a timeless feature in mobile phone construction. Leveraging advanced manufacturing expertise, SZS tailors each hinge to meet precise friction specifications and dimensional requirements unique to every client.
